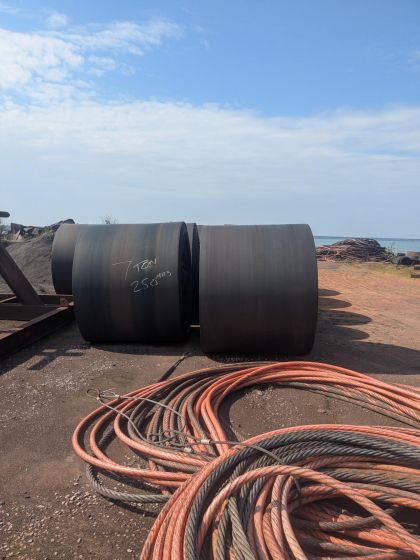

300te Various coils of steel cord conveyor belt ranging from 1680mm-1800mm wide

Various coils of steel cord conveyor belt ranging from 1680mm-1800mm wide

Estimated weight-300 Ton

Used Conveyor belting-Sold as seen .

Belt Properties Standard Units Values
elements
Belt width ISO 15236 mm 1680 -1800mm ± 12
Belt Belt thickness ISO 7590 mm ~ 19,6 ± 2
dimensions Top cover thickness ISO 7590 mm 8,0 + free / -0,4
Bottom cover thickness ISO 7590 mm 5,0 + free / -0,3
Edge rubber ISO 15236 mm ~ 25,8
Belt weight - kg/m ~ 42,3
Technical data of Steelcord conveyor belts 29/6/2011
Steel
Cables
Carry Cover
Bottom Cover 25,8 14 4,4
5,0
8,0
1680
19,6
Number of cords 117
Cord pitch ISO 13827 mm 14
Cord diameter DIN EN 12385 mm 4,4 ± 0,2
Cord constuction - - 7 x 7
Carcass Tensile strengh of cord ISO 7622-2 kN ≥ 19,2
Tensile strengh of belt ISO 15236 N/mm ≥ 1250
Working tension - N/mm ≥ 187
Adhesion cover to carcass ISO 8094 N/mm ≥ 15
Static Pull-out strength ISO 7623 N/mm ≥ 105
Static Pull-out strength after aging ISO 7623 N/mm ≥ 95
Cover quality
Tensile strength ISO 37 Mpa ≥ 25
Elogation of break ISO 37 % ≥ 500
Tensile strength after aging ISO 188 % ≤ 15
Cover Elogation of break after aging ISO 188 % ≤ 25
Abrasion resistance ISO 4649 mm3
≤ 120
Hardness ISO 868 Shore A 63 ± 5
Ozone resistance ISO 1431-1 Scale 0
Specific weight ISO 2781 g/cm3
~ 1,10
Number of steps 1
Splice Step length mm ≥ 350
Splice length mm 650
Overall length of splice incl. bias mm 115
